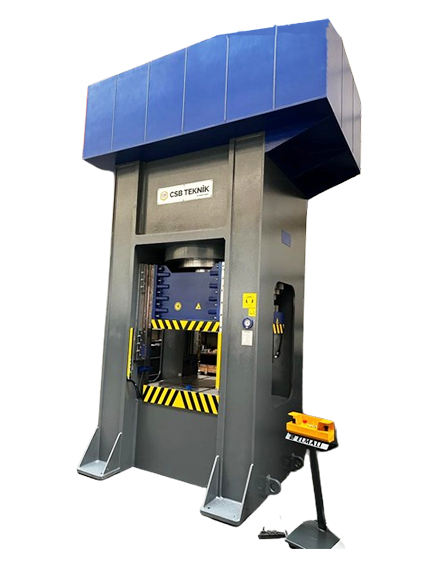

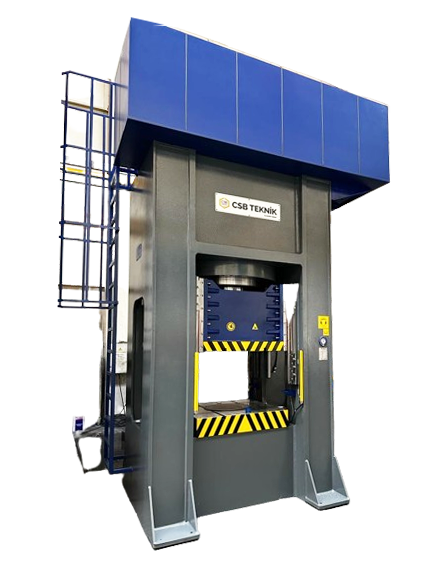

CSB Press H-type Hydraulic Presses, manufactured with a capacity of up to 3000 tons, are produced in standard sizes but can also be customized according to customer needs. These hydraulic presses, preferred for tasks requiring any kind of deep drawing process, can also be supplied with molds if desired. Additionally, for jobs requiring extraction, an extraction cylinder placed within the upper platen facilitates easier and quicker removal of the product after the molding process is complete.
Precision machined frames and tables enable you to achieve high precision in your production, ensuring accurate product formation.
Upon request, mold loading devices or other mold loading solutions are recommended for loading molds.
Standard Equipments
- Chrome Plated Cylinder
- Welded Steel Body
- HMI Touch Control Panel
- Safety Cover and Light Barrier
- Dual Hand Button Control
- Adjustable Pressure
- Adjustable Stroke
- Pressure Gauge
- Lubrication
- Cooling System
- T-Slotted Table
- User Manual
- 1 Year Warranty
Optional Equipments
- Extractor Cylinder
- Speed Adjustment
- Mold Shifting Device
Technical Specifications
Model | HD 100 | HD 200 | HD 300 | HD 400 | HD 500 | HD 600 | HD 800 | HD 1000 | HD 1500 | HD 2000 | HD 3000 |
---|---|---|---|---|---|---|---|---|---|---|---|
Capacity (ton) | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 1500 | 2000 | 3000 |
Table Size | 800x1000 | 800x1000 | 1000x1200 | 1200x1400 | 1200x1500 | 1500x1700 | Price request | Price request | Price request | Price request | Price request |
Stroke (mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |||||
Working Stroke Length (mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |||||
Motor Power (kw) | 22 | 22 | 22 | 30 | 30 | 37 | |||||
Pump (L) | 48 | 48 | 87 | 116 | 116 | 210 | |||||
Descent Speed (mm/s) | 100 | 100 | 100 | 100 | 100 | 100 | |||||
Rotation Speed(mm/s) | 140 | 140 | 140 | 140 | 140 | 110 | |||||
Operating Speed(mm/s) | 15 | 8 | 10 | 10 | 8 | 15 | |||||
Cushion | |||||||||||
Capacity (ton) | 40 | 65 | 130 | 150 | 200 | 250 | |||||
Stroke (mm) | 300 | 300 | 300 | 300 | 300 | 300 | |||||
Overall Dimensions (LxWxH) mm | 2200x2100 x4200 | 2200x2100 x4200 | 2400x2300 x4500 | 2600x2500 x4700 | 2600x2500 x4900 | 3000x2800 x5500 | |||||
Weight (kg) | 9000 | 12000 | 17000 | 23000 | 26000 | 33000 |
