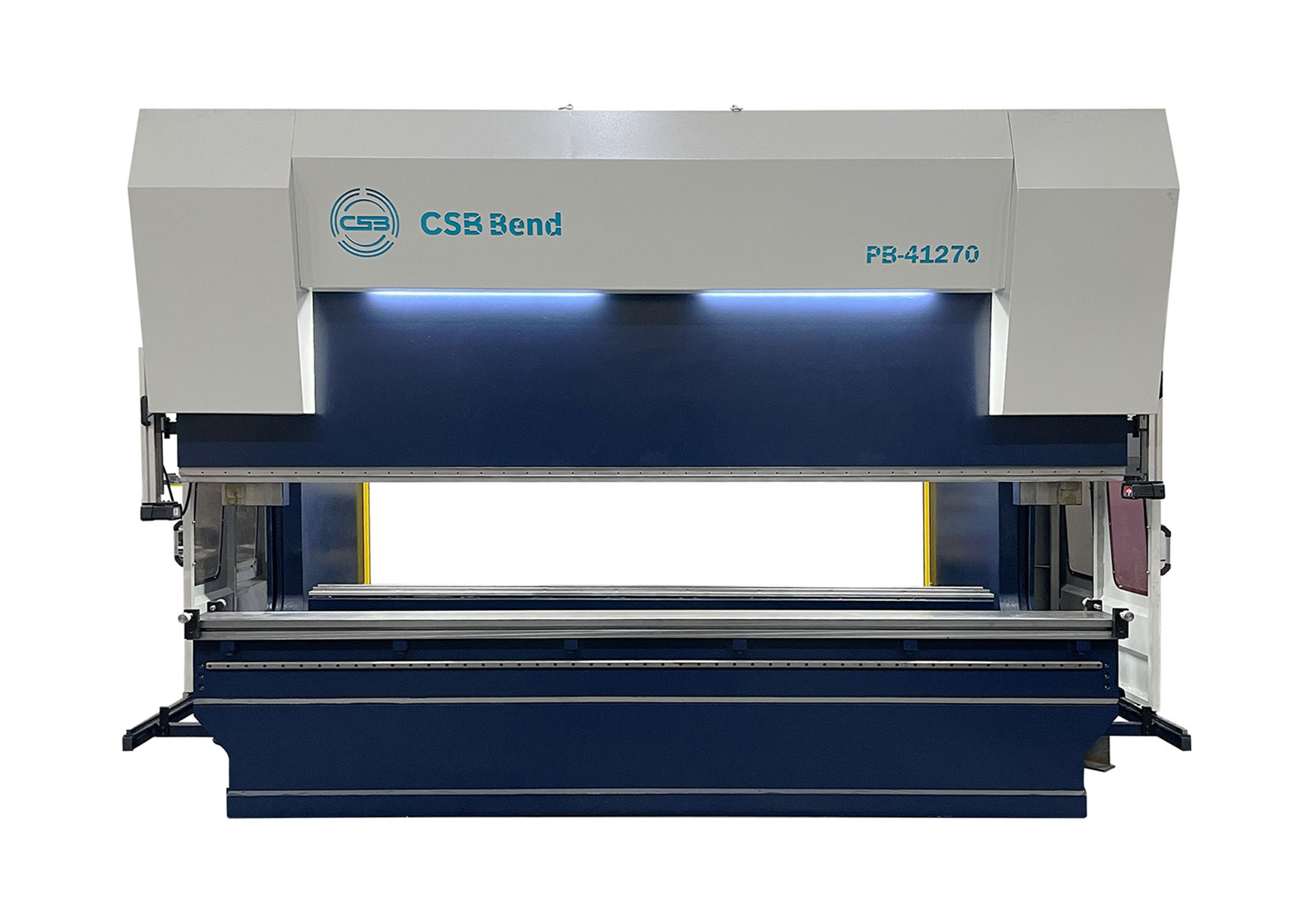

CNC Hydraulic Press Brake
Perfect equipment for precision bending
Best in its class with an easy-to-program control unit, stable frame construction, excellent design, low operating costs, compatibility with different tooling options, and maximum safety standards.
The CNC Hydraulic Press Brake has been designed using modern technologies to support precision component bending and increase production efficiency. Proven, high-quality components are used throughout the machine. The machine frames undergo stress-relieving treatment to ensure precise operation and long service life.
The design and stability of the backgauge are among the most important factors affecting bending quality. Accurate bending and flawless products are possible with a stable and precise backgauge system.
Backgauge features:
- High speed and precision
- Safe movement
- Adjustment capability at every position
- Resistant to impacts

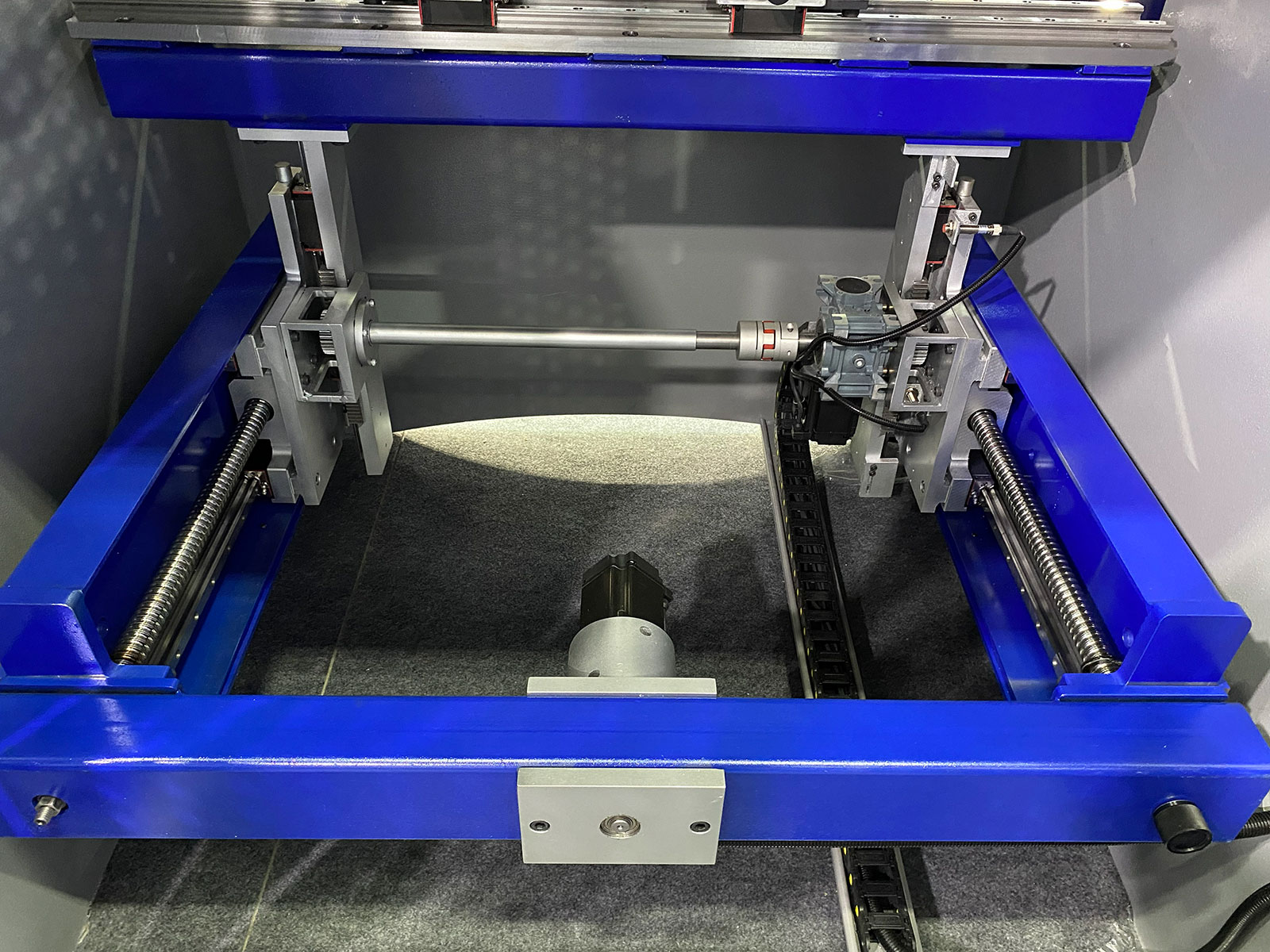

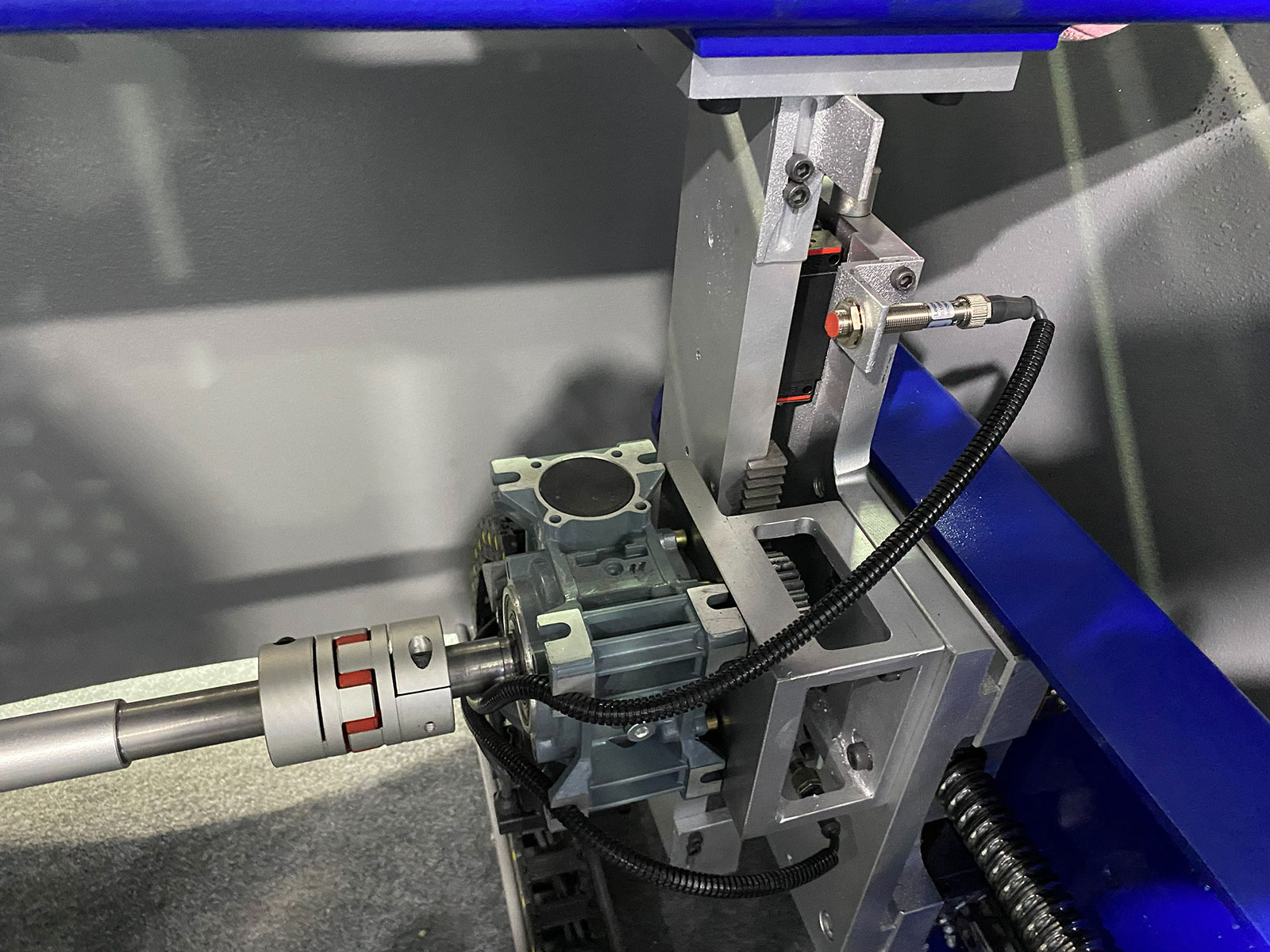

The high-speed backgauge, driven by ball screws, is also supported by linear guides. This provides long service life, high precision, and resistance to impacts.

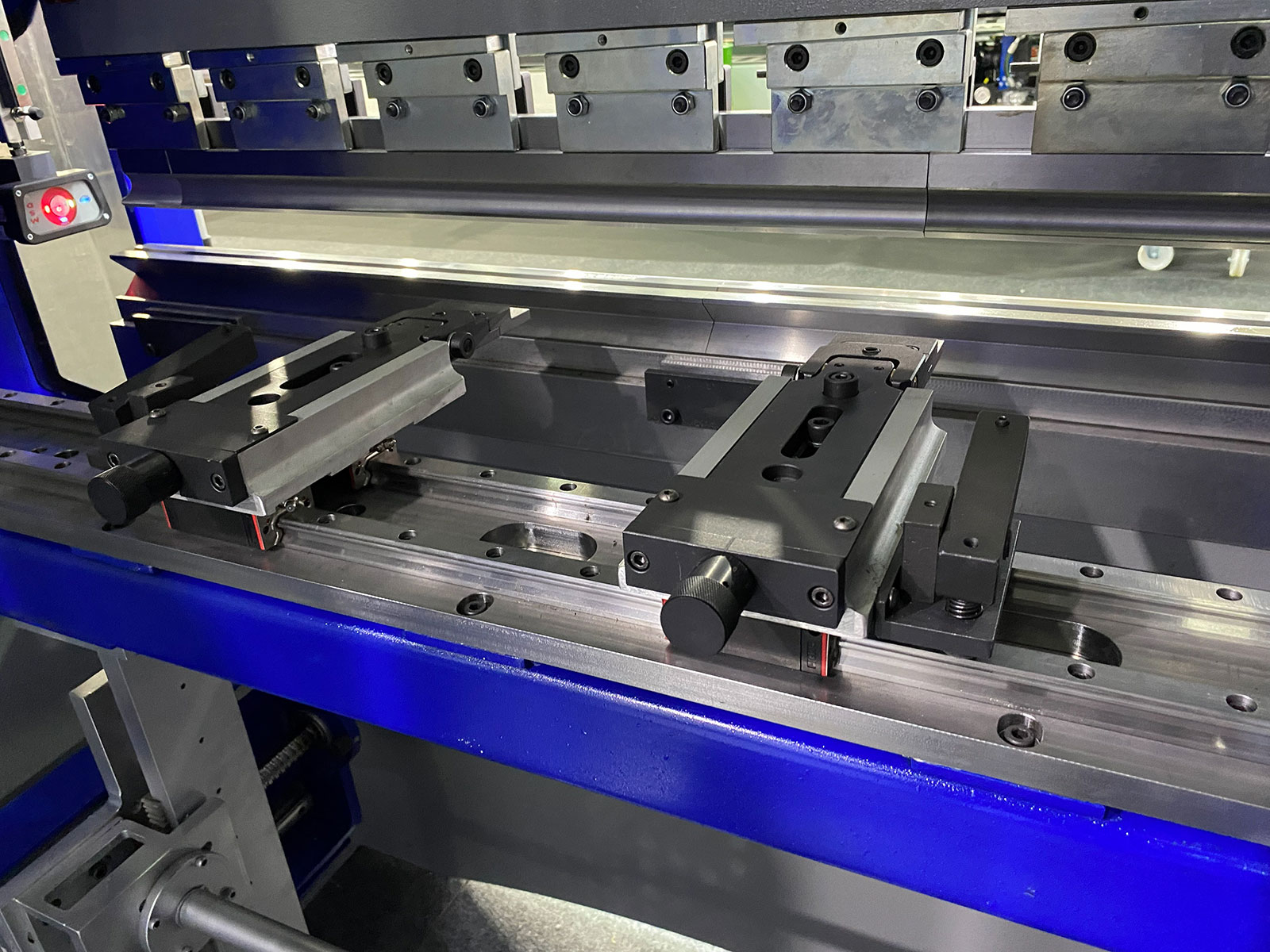

The stepped backgauge finger has been designed to perform all types of bending operations with maximum stability.
General Features:
- High-precision, stress-relieved steel construction with a durable monoblock frame
- Automatic reference-based axis calibration during initial start-up
- Advanced backgauge system integrated with ball screws and linear guides
- Hardened and ground tools for long-lasting and precise bending

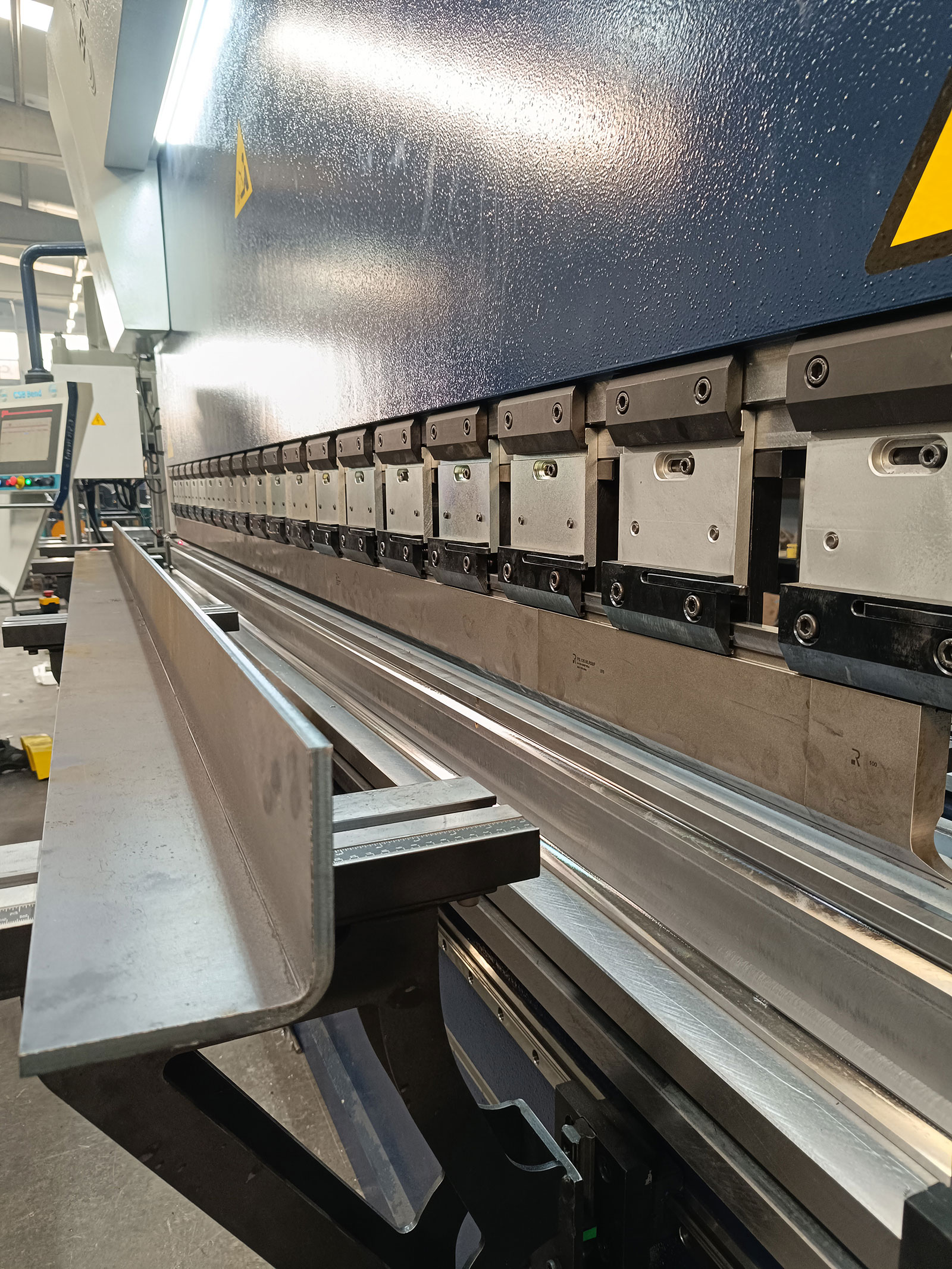

- Quick tool-clamping system suitable for sectional tooling
- Precise results in long and deep bending operations
- High-precision linear scales
- Safety in compliance with CE standards
- Globally recognized hydraulic and electrical components
Technical Specifications:
| Machine Type | Bending Force (Ton) | Bending Length A (mm) | Distance Between Columns B (mm) | Stroke C (mm) | Daylight Opening D (mm) | Throat Depth E (mm) | Table Height (mm) | Foundation Depth T (mm) | Front Support Arms (Pcs.) | Y-Axis Rapid Speed (mm/s) | Y-Axis Working Speed (mm/s) | Y-Axis Return Speed (mm/s) | X-Axis Speed (mm/s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1600 | 60 | 1600 | 1300 | 220 | 435 | 350 | 850 | -- | 2 | 140 | 11 | 140 | 350 |
| 2100 | 60 | 2100 | 1600 | 260 | 485 | 450 | 850 | -- | 2 | 140 | 11 | 140 | 350 |
| 2600 | 100 | 2600 | 2200 | 265 | 485 | 410 | 900 | -- | 2 | 140 | 10 | 110 | 350 |
| 3100 | 100 | 3100 | 2600 | 265 | 485 | 410 | 900 | -- | 2 | 140 | 10 | 110 | 350 |
| 3135 | 135 | 3100 | 2600 | 265 | 485 | 410 | 900 | -- | 2 | 140 | 10 | 100 | 350 |
| 3175 | 175 | 3100 | 2600 | 265 | 485 | 410 | 900 | -- | 2 | 130 | 10 | 100 | 350 |
| 3220 | 220 | 3100 | 2600 | 265 | 485 | 410 | 900 | -- | 2 | 130 | 10 | 100 | 350 |
| 3270 | 270 | 3100 | 2600 | 265 | 485 | 410 | 900 | -- | 2 | 110 | 9 | 100 | 350 |
| 3320 | 320 | 3100 | 2600 | 365 | 585 | 510 | 940 | -- | 2 | 100 | 9 | 90 | 350 |
| 3400 | 400 | 3100 | 2600 | 365 | 585 | 510 | 950 | -- | 2 | 90 | 8 | 80 | 350 |
| 4175 | 175 | 4100 | 3600 | 265 | 485 | 410 | 950 | -- | 2 | 120 | 10 | 100 | 350 |
| 4220 | 220 | 4100 | 3600 | 265 | 485 | 410 | 950 | -- | 2 | 110 | 9 | 100 | 350 |
| 4270 | 270 | 4100 | 3600 | 265 | 485 | 410 | 960 | -- | 2 | 100 | 8 | 90 | 250 |
| 4320 | 320 | 4100 | 3600 | 365 | 585 | 510 | 1000 | -- | 2 | 90 | 8 | 80 | 350 |
