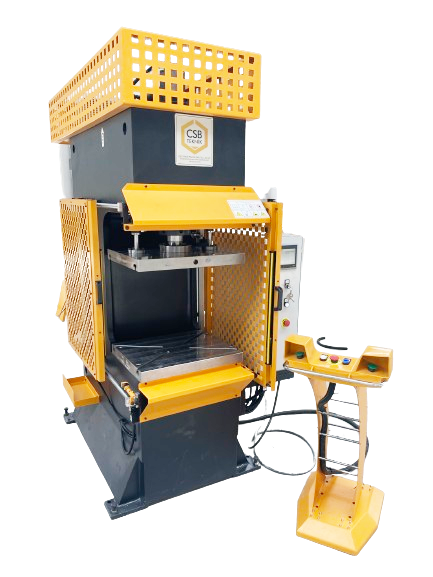

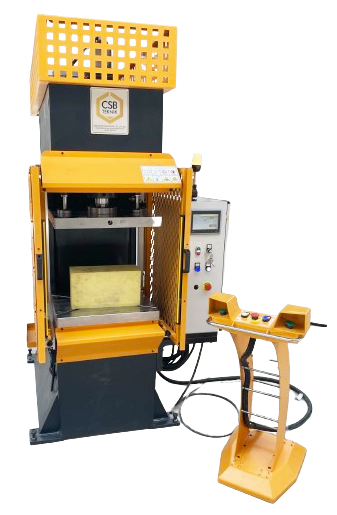

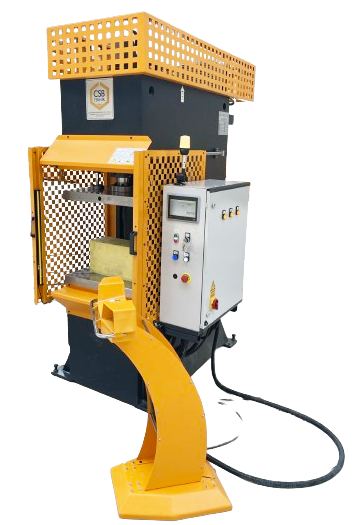

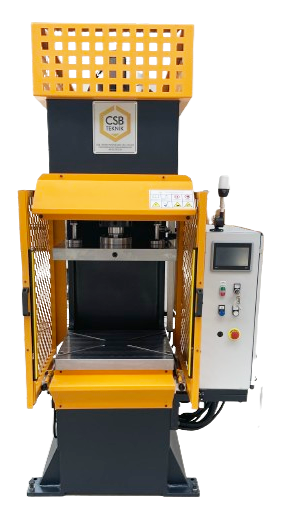

CSB Press manufactures C Type Presses with a capacity of up to 250 tons, available in standard sizes but also customizable according to customer requirements. These C Type presses can be used for bending, hole punching, cutting, and straightening depending on the mold used. With three open sides, mold installation and removal can be easily performed. C Type presses, preferred by users working with smaller molds, are available in both automatic and manual configurations.

Standard Equipments

- Chrome Plated Cylinder
- Welded Steel Body
- Safety Cover and Light Barrier

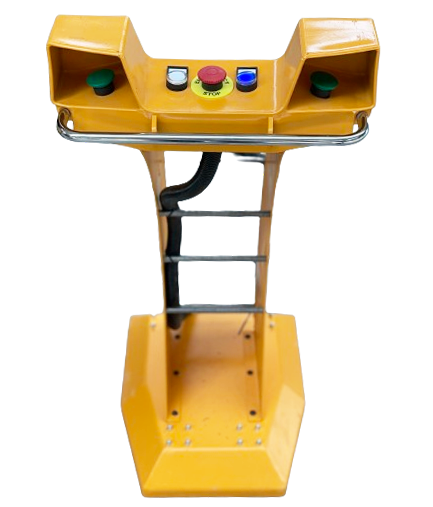

- Dual Hand Button Control
- Pressure Adjustment with Regulator
- Stroke Adjustment Sensor
- Pressure Gauge
- Cooling System
- T-Slotted Table
- User Manual
- 1 Year Warranty

Optional Equipments

- Touch Screen

Technical Specifications

Model	C 30	C 60	C 100	C 150	C 200	C 250
Capacity (ton)	30	60	100	150	200	250
Table Size	500x500	500x500	800x500	800x600	900x600	1000x600
Stroke (mm)	400	400	400	400	400	400
Working Stroke Length (mm)	400	400	400	400	500	600
Motor Power (kw)	4	3	4	5.5	11	11
Pump (L)	9	12+6	20+9	33+9	32+16	44+16
Descent Speed (mm/s)	10	12	12	12	9	9
Rotation Speed (mm/s)	17	21	18	21	18	18
Operating Speed (mm/s)	10	4	4	3	3	3
Length (mm)	1500	1500	1700	1700	1900	2000
Width (mm)	1400	1400	1500	1600	1700	1600
Height (mm)	2300	2300	2700	2900	2900	2900
Weight (kg)	2000	2400	5000	10000	13000	14000
