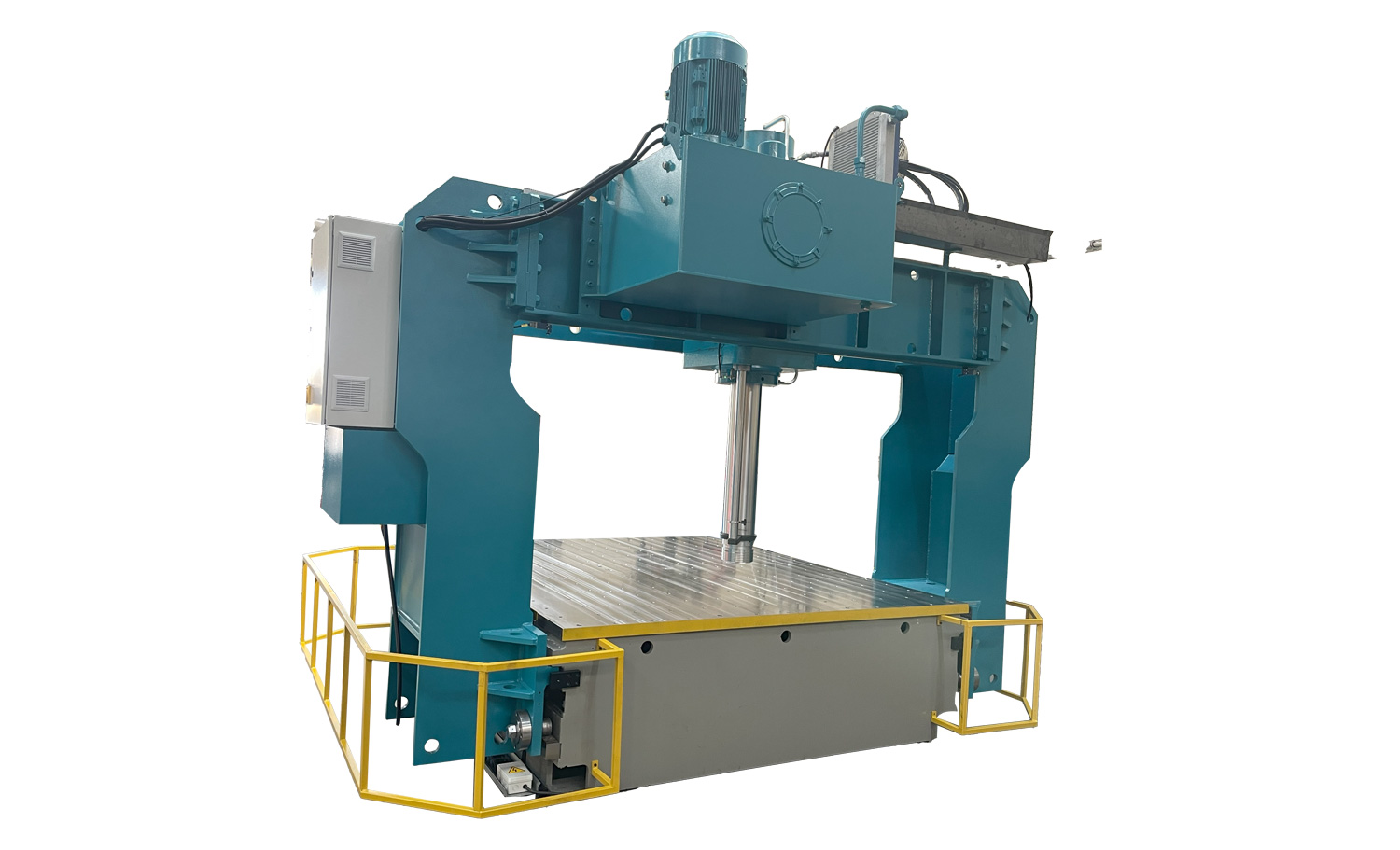

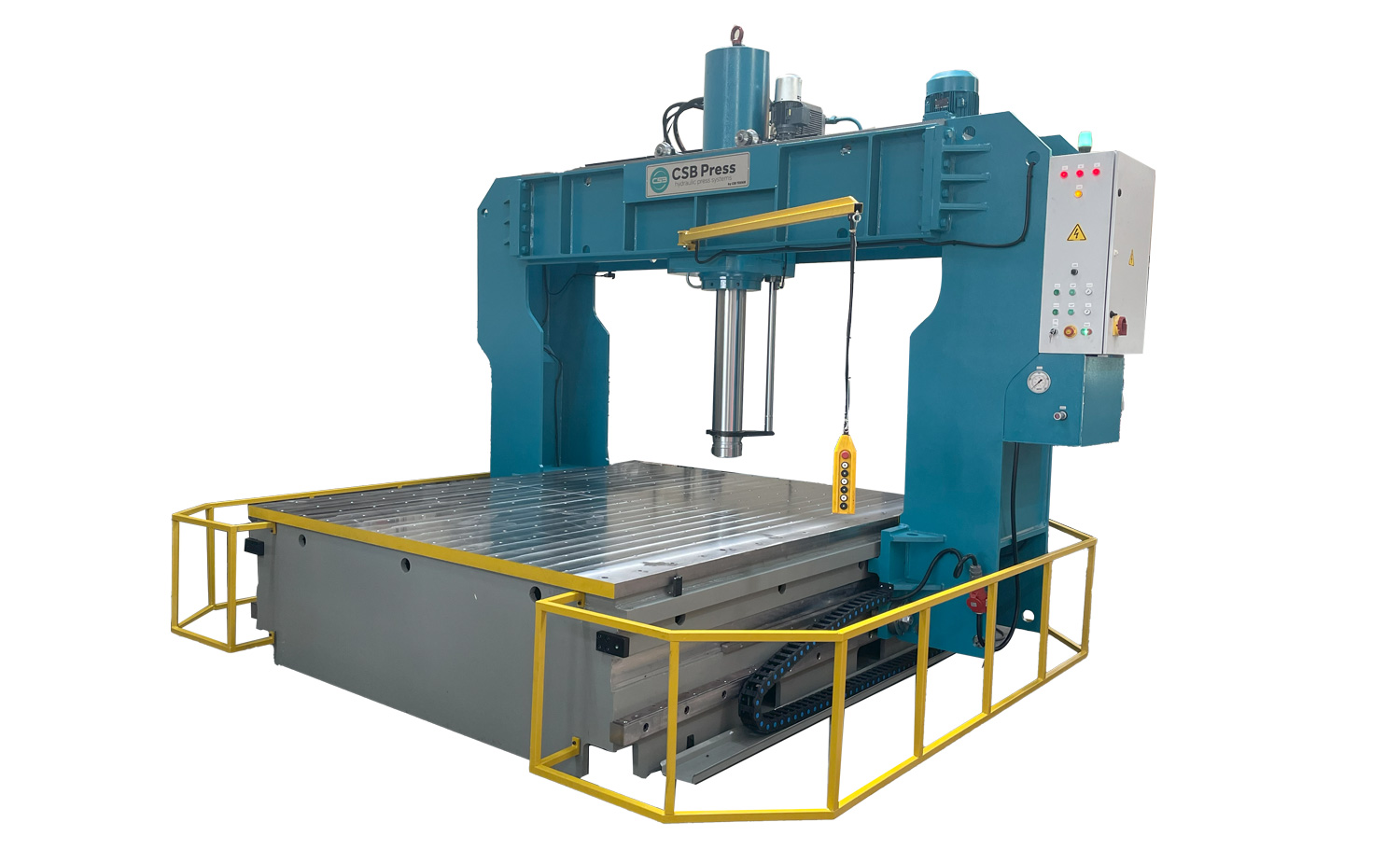

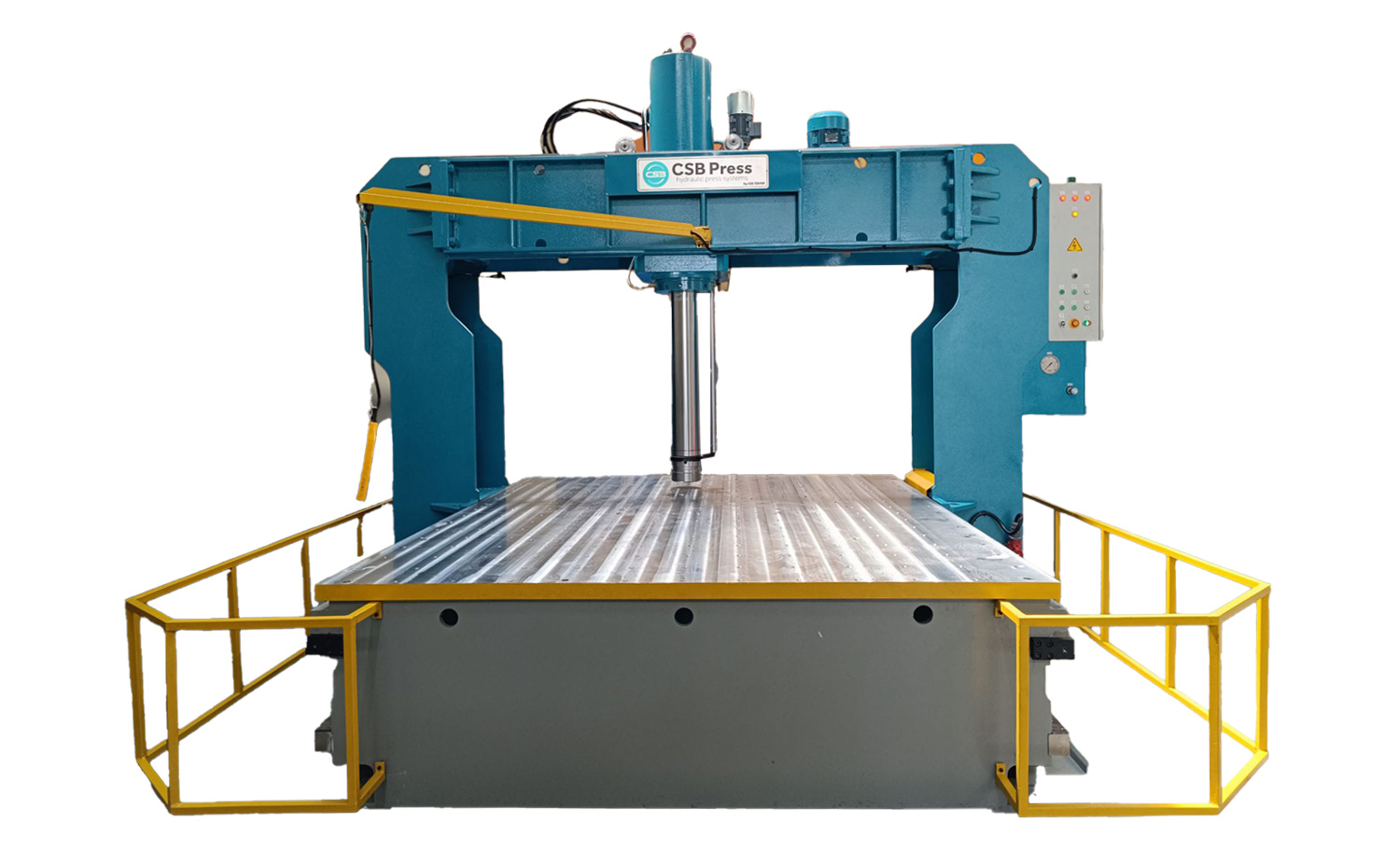

CSB Press Portal Type presses are used for straightening wide and long blades, plates, and pipes.
These presses, which can be manufactured in the desired size and tonnage, provide great convenience to the user as they can operate in three axes of movement.
Standard Equipments
- Chrome Plated Cylinder
- Welded Steel Body
- Control with Command

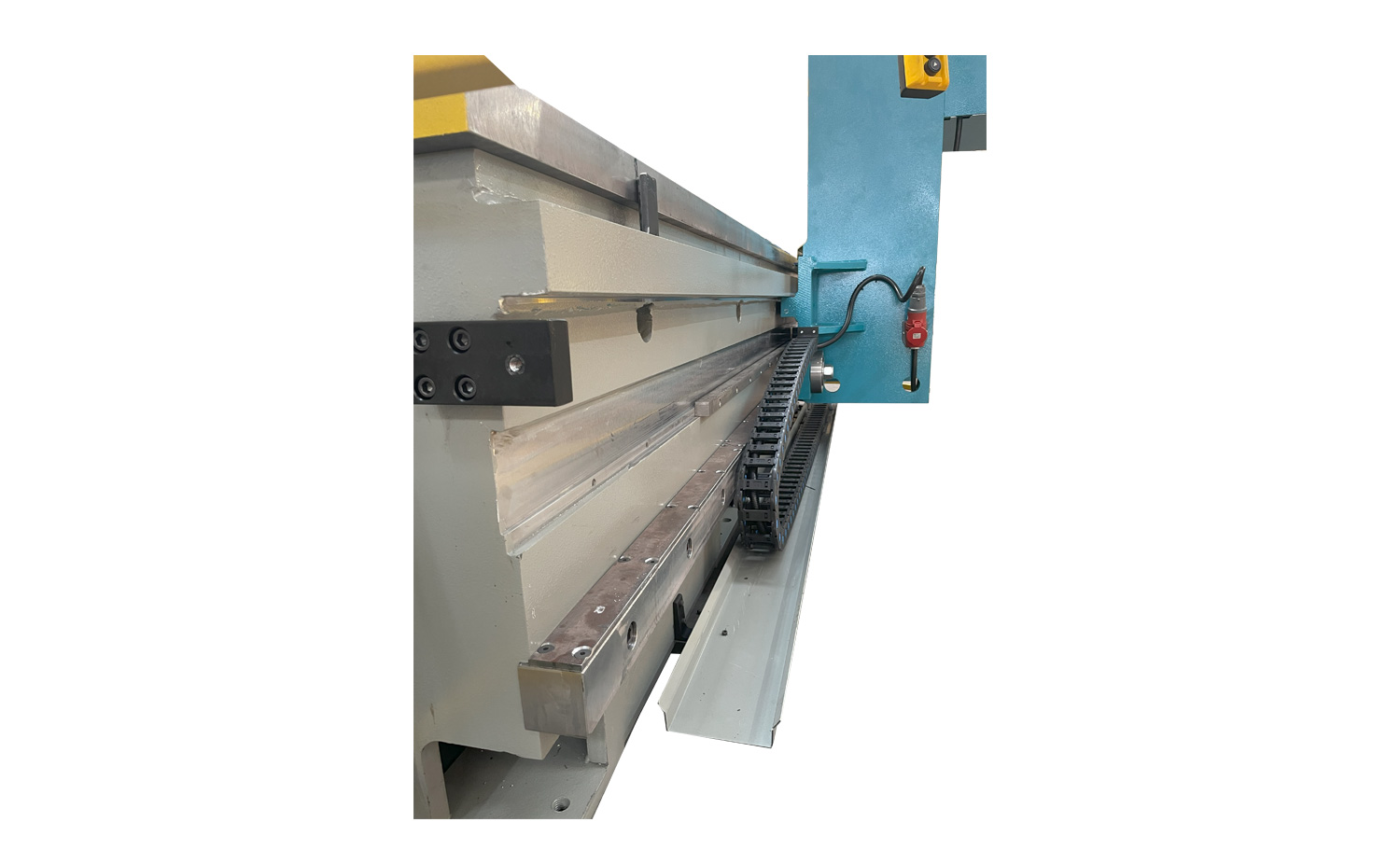

- Motor Movement in X, Y, Z Axes
- Can Stop at Desired Position
- Pressure Adjustment
- Pressure Gauge
- T-Slotted Table
- Working Table
- User Manual
- 1 Year Warranty
Technical Specifications
| Model | PDP 100 | PDP 200 | PDP 300 | PDP 400 |
|---|---|---|---|---|
| Capacity (ton) | 100 | 200 | 300 | 400 |
| Table Size | 1000x2000 | 1000x2500 | 1500x3000 | 1500x3500 |
| Stroke (mm) | 400 | 400 | 400 | 400 |
| Working Stroke Length (mm) | 600 | 600 | 600 | 600 |
| Motor Power (kw) | 4 | 7.5 | 15 | 18 |
| Descent Speed (mm/s) | 7 | 7 | 9 | 9 |
| Rotation Speed (mm/s) | 13 | 10 | 17 | 19 |
