Workshop Type Press | WSPB

The CSB Workshop-Type Press is highly efficient for straightening wide and long bars, plates, and pipes. Customizable in desired sizes and tonnages, this press is ideal for tasks requiring practical power in the workshop, including bearing removal and installation. With its robust construction, it delivers reliable performance even under challenging conditions, while its user-friendly design enhances workshop productivity and efficiency.

Standard Equipments

- Chrome Plated Cylinder
- Welded Steel Body
- Pressure Gauge
- Pressure Adjustment

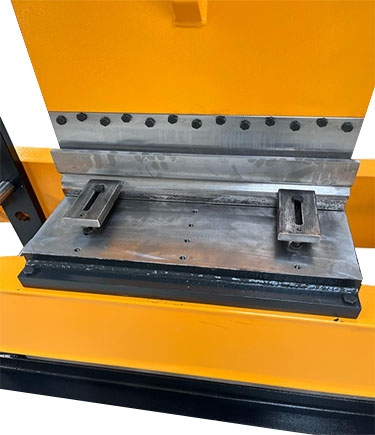

- Bending Die
- Manual Backgauge
- User Manual
- 1 Year Warranty

Optional Equipments

- NC Control
- Variable Speeds

Technical Specifications

Model	WSPB/100	WSPB/150	WSPB/200	WSPB/250	WSPB/300
Capacity (ton)	100	160	200	250	300
Bending Length	600	800	2000	2000	2000
Stroke (mm)	400	400	400	400	400
Working Stroke Length (mm)	400	400	400	400	400
Motor Power (kw)	4	5.5	7.5	11	15
Pump (L)	11	15	22	39	48
Descent Speed (mm/s)	5	6	10	10	10
Rotation Speed (mm/s)	7	9	18	18	18
Operating Speed (mm/s)	3	3	6	5	5
Length (mm)	1900	2000	2900	2900	2900
Width (mm)	1100	1100	1300	1300	1300
Height (mm)	2500	2600	2750	2750	2750
Weight (kg)	2000	2500	4000	4500	6000
