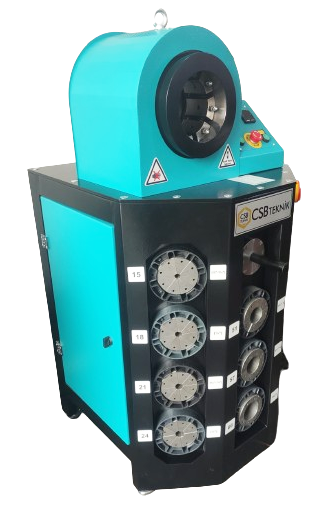

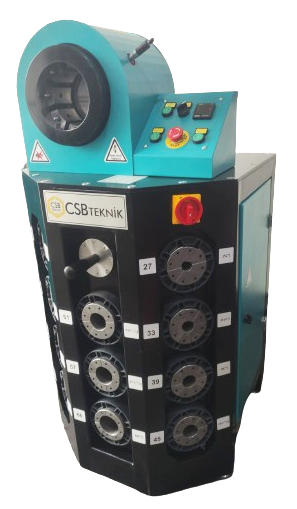

Hydraulic Hose Crimping Presses | CCP72

Equipments

- Automatic Control System
- Foot Pedal
- Molds


Technical Specifications

Crimping Diameter (mm) From Ø10 to 72
Max Opening (mm) 95
Crimping Precision (mm) 0.02
Nominal Pressure (Mpa) 30
Power (kw) 4
Voltage (V) 380V 50Hz
Nominal Flow Rate (L) 14 (min)
Mold 10, 16, 19, 23, 30, 34, 38, 45, 52, 63, 72
Dimensions (LxWxH) mm 600x900x1350
510x410x550
Weight (kg) 300
