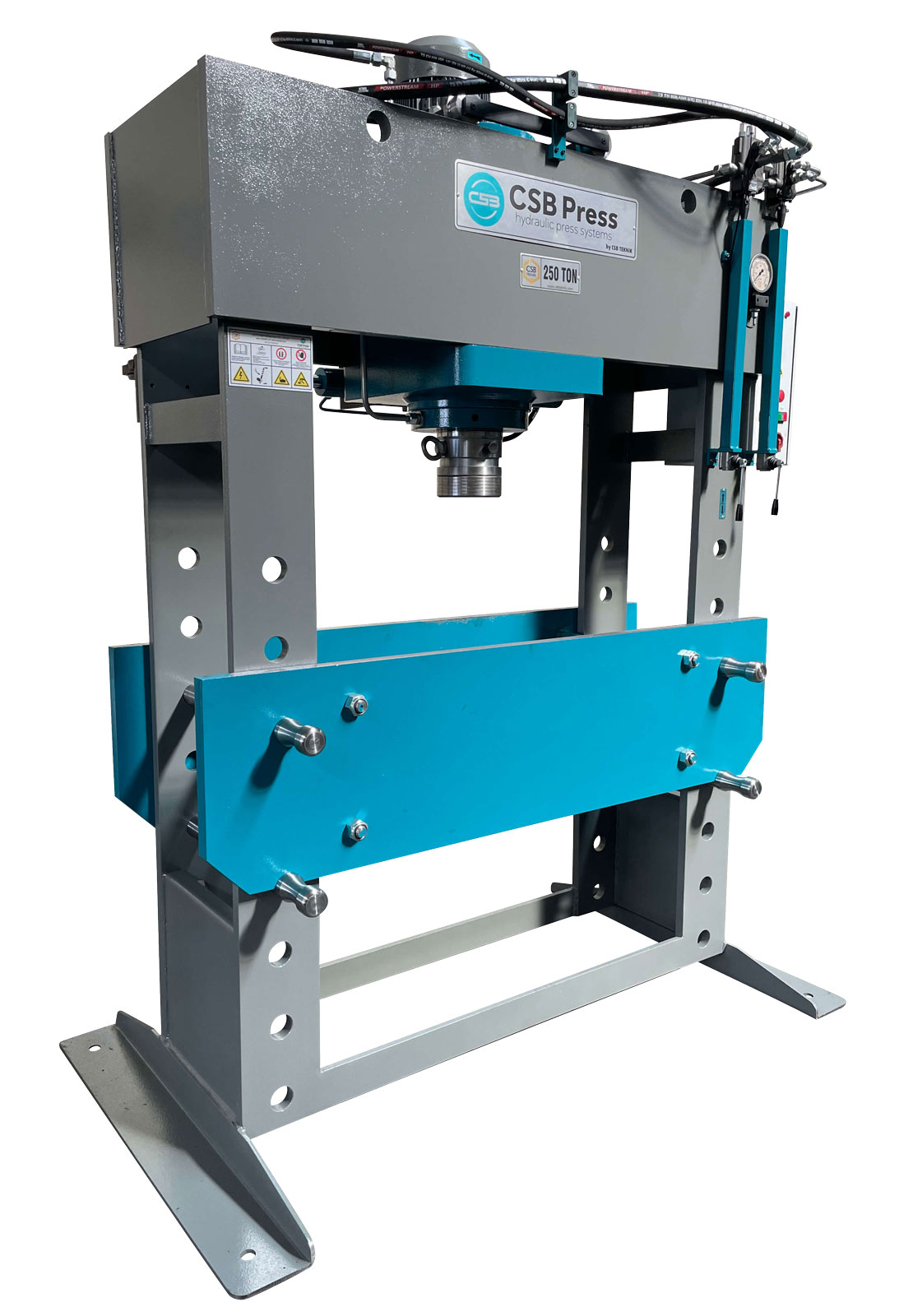

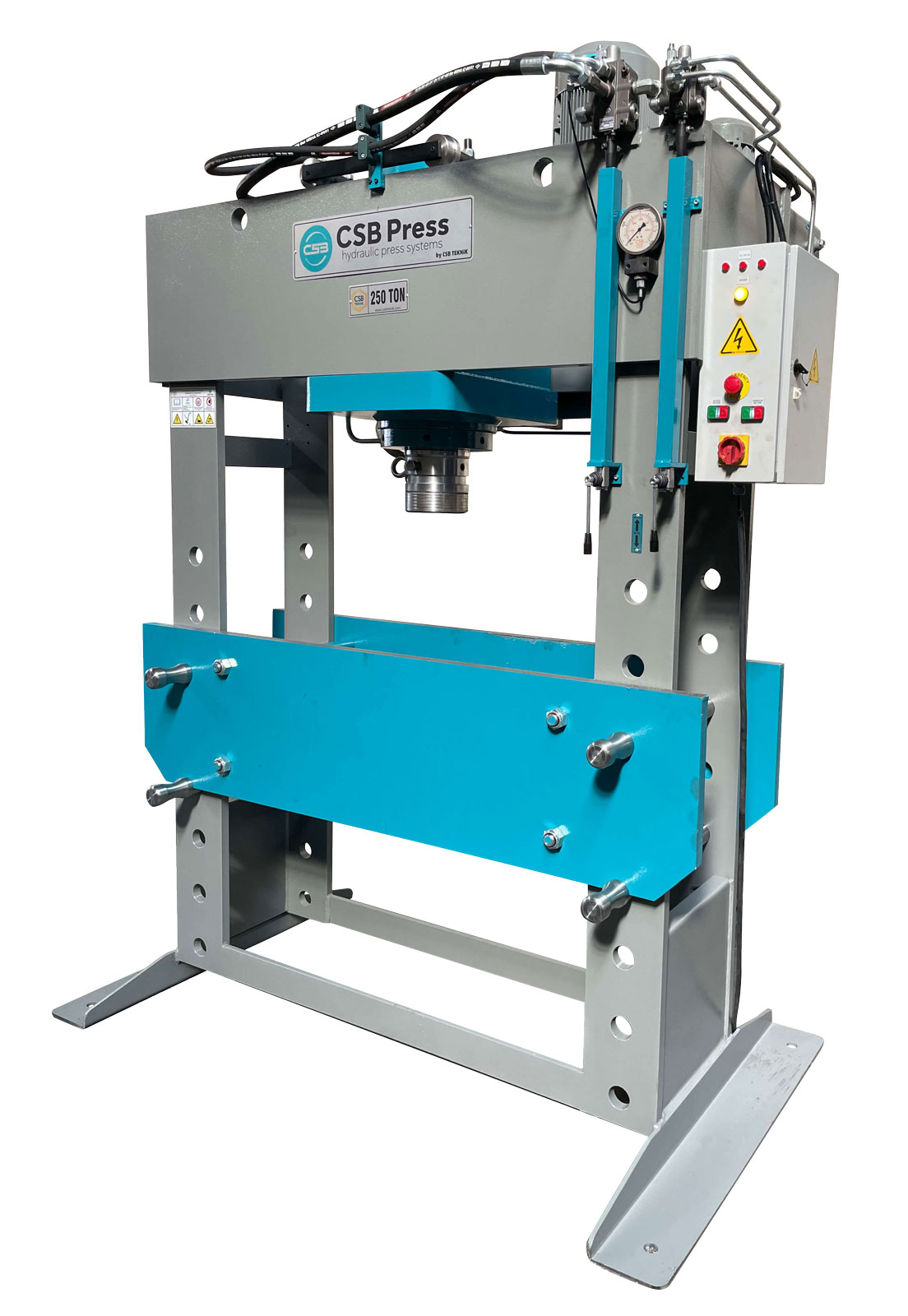

Workshop Type Press | WSP250

The CSB Workshop-Type Press is highly efficient for straightening wide and long bars, plates, and pipes. Customizable in desired sizes and tonnages, this press is ideal for tasks requiring practical power in the workshop, including bearing removal and installation. With its robust construction, it delivers reliable performance even under challenging conditions, while its user-friendly design enhances workshop productivity and efficiency.

Standard Equipments

- Chrome Plated Cylinder
- Welded Steel Body
- Pressure Gauge
- Pressure Adjustment
- User Manual
- 2 Year Warranty
- CE Marking

Optional Equipments

- Pressure Regulator
- V Die
- Automatic Control
- Table
- Hydraulic Sliding Cylinder

Technical Specifications

Capacity (ton)	250
Working Dimension	1300x450
Stroke (mm)	400
Working Stroke Length (mm)	900
Motor Power (kw)	15
Pump (L)	34.5
Downward Speed (mm/s)	8.58
Rotation Speed (mm/s)	13.03
Overall Dimensions (LxWxH) mm	1200x2450x2650
Weight (kg)	3100
