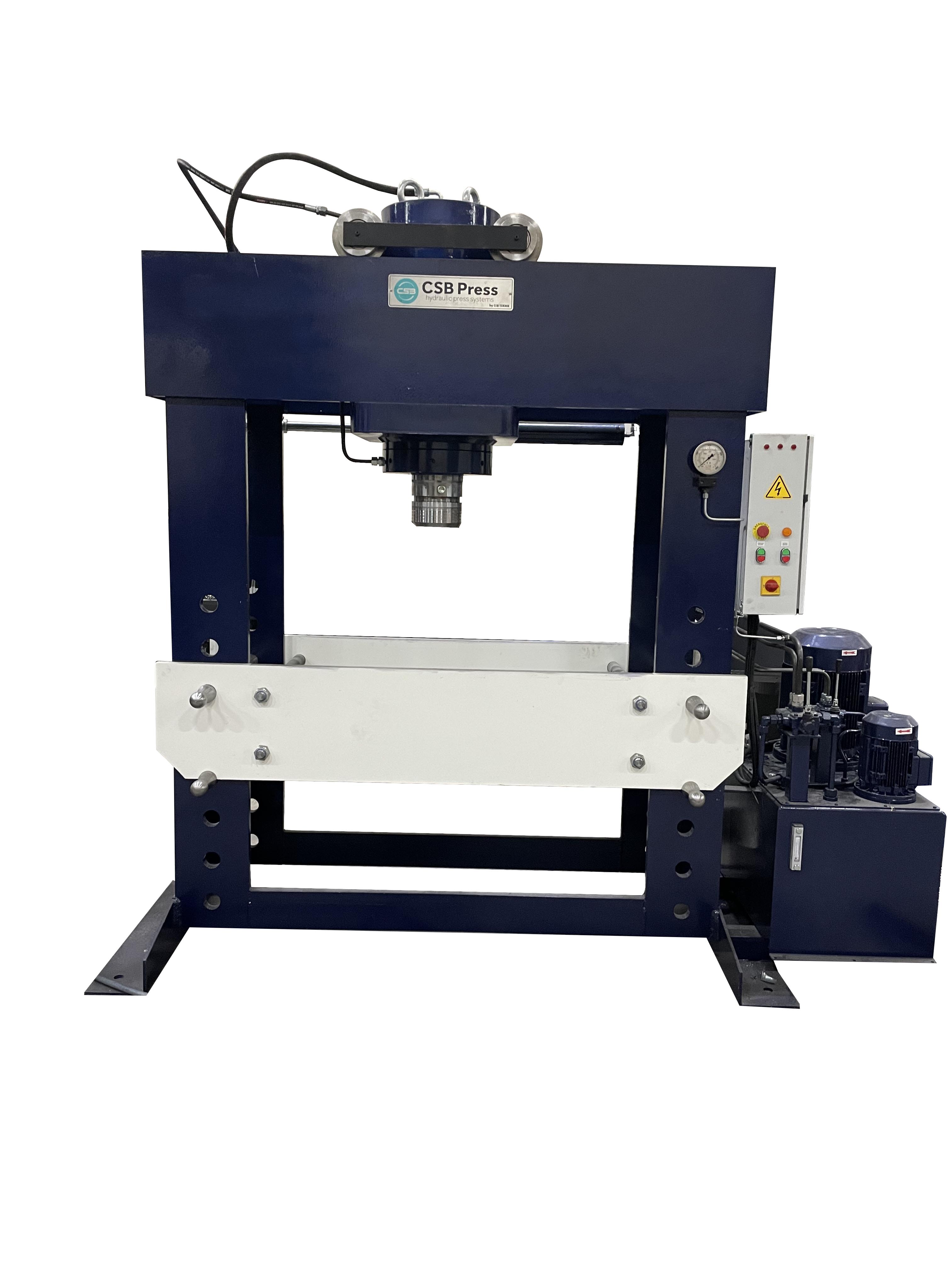

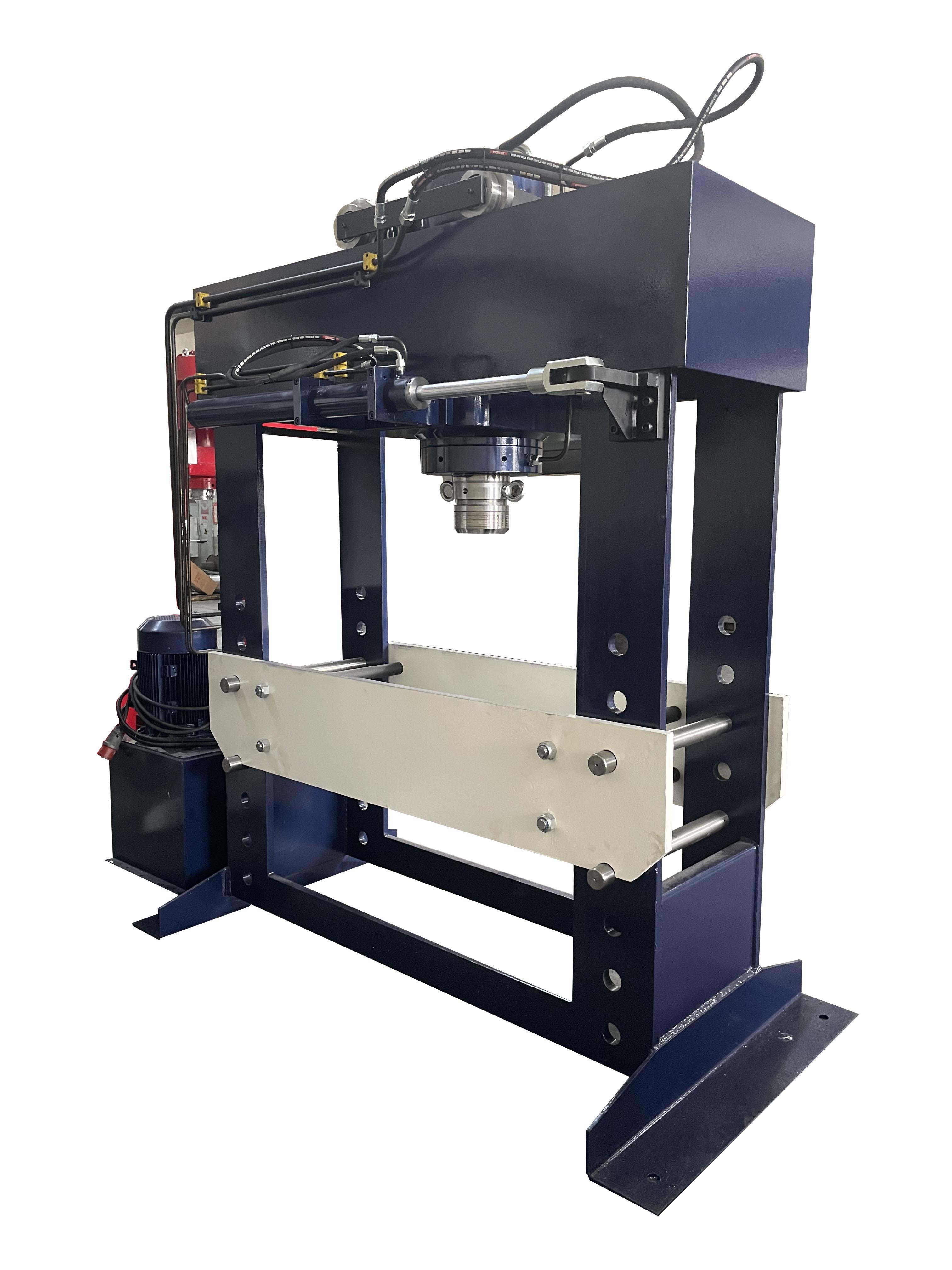

Workshop Type Press | WSP300

The CSB Workshop-Type Press is highly efficient for straightening wide and long bars, plates, and pipes. Customizable in desired sizes and tonnages, this press is ideal for tasks requiring practical power in the workshop, including bearing removal and installation. With its robust construction, it delivers reliable performance even under challenging conditions, while its user-friendly design enhances workshop productivity and efficiency.

Standard Equipments

- Chrome Plated Cylinder
- Welded Steel Body
- Pressure Gauge
- Pressure Adjustment
- User Manual
- 2 Year Warranty
- CE Marking

Optional Equipments

- Pressure Regulator
- V Die
- Automatic Control
- Table
- Hydraulic Sliding Cylinder

Technical Specifications

Capacity (ton)	300
Working Dimension	1400x550
Stroke (mm)	400
Working Stroke Length (mm)	900
Motor Power (kw)	15
Pump (L)	48
Downward Speed (mm/s)	9.94
Rotation Speed (mm/s)	20
Overall Dimensions (LxWxH) mm	1500x2450x3300
Weight (kg)	4500
